TWTLPlan: Language-Guided Path Planning Using Time-Window Temporal Logic (TWTL)

What is TWTLPlan?

TWTLPlan is a tool to solve a 2D path planning problem where the path must satisfy a specification given as a Time-Window Temporal Logic (TWTL) formula. A TWTL formula formally captures the notion of visiting regions of interest in order and staying in them for a period of time. For example, a specification in natural language such as "perform task A of duration 1 within 2 time units; then, within the time interval [1, 8] perform tasks B and C of durations 3 and 2, respectively; furthermore, C must be finished within 4 time units from the start of B;" would correspond to the following TWTL formula:

f = [H^1 A]^[0, 2] * [H^3 B ^ [H^2 C]^[0, 4]]^[1, 8]

A key feature of TWTL is that a formula may be relaxed, i.e., we can add a variable delay to each deadline. A relaxed formula with a positive delay is a weaker specification, while a negative delay indicates a stronger specification. A path satisfying a stronger specification satisfies a weaker one. TWTLPlan makes use of this feature by finding a path that satisfies a weaker specification first, then attempts to reduce the delay until the original specification is satified. These paths are computed using a sampling-based algorithm called RRT*.

Requirements

You need Python2.7 with PIP installed, git and wget. The setup script is written in bash and has been tested only in Linux. You should also consider using virtualenvs.

Quickstart

Clone the repository with:

$ git clone https://github.com/franpenedo/twtlplan.git

Then run the setup script (optionally within a virtualenv):

$ ./setup.sh

You can run the provided examples with:

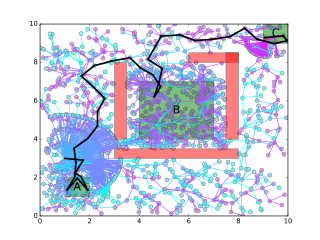

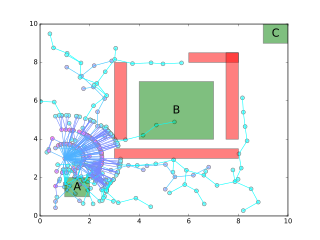

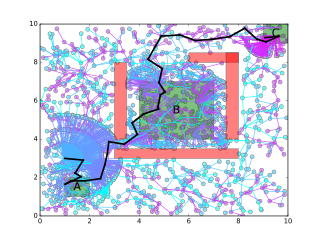

$ python run_benchmark.py draw examples.cs1
$ python run_benchmark.py draw examples.cs2

Writing your own scenario

You must create a module with the following objects defined in it:

• region: a twtlplan.util.Box object defining the domain of the scenario.
• obstacles: a list of Boxes defining the obstacles in the scenario.
• props: a dictionary of str labels to Box representing regions of interest in the scenario.
• spec: a str with the TWTL specification. All regions of interest appearing in this formula must also appear as keys in props.
• x_init: a numpy.array of shape (2,) with the initial position of the agent.
• d: a float with the step size.

Publication

A full description of TWTL, the algorithm implemented in TWTLPlan and an analysis of its performance can be found in our peer-reviewed publication Language-Guided Sampling-Based Planning using Temporal Relaxation.
